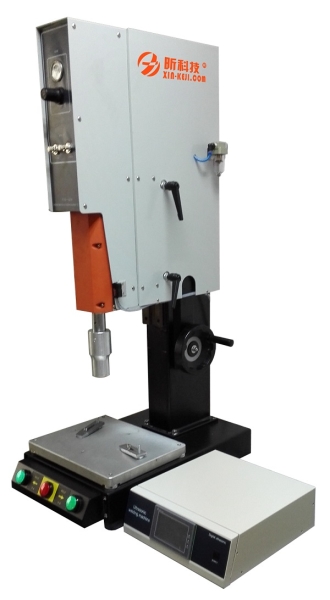

智能超聲波焊接機CX-2020ZN
超聲功率 Ultrasonic power 1000W 1500W 2000W 2600W
焊接時間 Weld time 0.001-9.999
保壓時間 Hold pressure time 0.001-9.999
工作行程 Work distance 75mm
工作氣壓 Work pressure 0.15-0.8Mpa
工作電源 Voltage AC220V,50Hz
尺寸 Size of Shape 400×600×1400mm 400×600×1400mm 500×600×1400mm 600×700×2000mm
凈重 Net weigh 120KG 130KG 145KG 180KG
產產品特點：
◆智能頻率跟蹤
◆功率無極調節
◆超大液晶顯示屏
◆IGBT功率模塊輸出
◆功率強勁穩定
◆時間控制模式
Product?features:?
◆Intelligent?frequency?tracking?
◆The?infinite?power?to?adjust??
◆Large?LCD?screen?
◆IGBT?power?module?output?
◆Strong?and?stable?power?
◆Time?control?mode?(optional)
1、智能觸摸控制系統，超大液晶屏顯示，極致簡單的操作，有效提高生產效率。
2、真正數字化自動追頻電路，頻率全自動搜索補償，每時每刻保持最佳諧振狀態，使生產過程精準、穩定。
3、無級振幅控制,以5%遞增,大小膠件均能完美焊接 ,有效減少激穿,燙傷等不良品。
4、內設模具電流過高保護，頻率偏移保護，總輸出過大保護等多種模式，安全無虞，持久耐用。
5、寬頻帶設計，適應各種大小焊模和不同的設計模具。
6、采用FET場效管做功率放大，比傳統硅功率管反應速度快100倍以上，輸出更穩定有力。
7、機器故障自動檢測，方便維修。
8、時間、能量、深度控制模式可選，生產無憂，品質保證。
1, the intelligent touch control system, large LCD screen display, the extreme simple operation, effectively improve the production efficiency.
2, real digital automatic tracing frequency circuit, frequency automatic compensation, at all times to maintain optimum resonance condition, make the production process of precision, stability.
3, stepless amplitude control, increased by 5%, the size of plastic parts can perfect welding, effectively reduce the shock wears, scald and other defective products.
4, internal mold high frequency offset current protection, protection, total output of a variety of modes of large protection, safe, durable.
5, the broadband design, adapt to various sizes of welding mould and mould design of different.
6, using the FET field effect tube power amplification, the reaction rate is more than 100 times faster than traditional silicon power transistor, the output is more stable and powerful.
The main parameters:
Automatic detection of
7, machine failure, convenient repair.
8, time control mode optional, worry about production, quality assurance.
Z系列時間控制：
全智能時間控制系統，電腦控制、開機自檢、自動追頻、智能保護，精準時間控制0.001秒，便捷更耐用。
焊接時間 Weld time 0.001-9.999
保壓時間 Hold pressure time 0.001-9.999
工作行程 Work distance 75mm
工作氣壓 Work pressure 0.15-0.8Mpa
工作電源 Voltage AC220V,50Hz
尺寸 Size of Shape 400×600×1400mm 400×600×1400mm 500×600×1400mm 600×700×2000mm
凈重 Net weigh 120KG 130KG 145KG 180KG
產產品特點：
◆智能頻率跟蹤
◆功率無極調節
◆超大液晶顯示屏
◆IGBT功率模塊輸出
◆功率強勁穩定
◆時間控制模式
Product?features:?
◆Intelligent?frequency?tracking?
◆The?infinite?power?to?adjust??
◆Large?LCD?screen?
◆IGBT?power?module?output?
◆Strong?and?stable?power?
◆Time?control?mode?(optional)
1、智能觸摸控制系統，超大液晶屏顯示，極致簡單的操作，有效提高生產效率。
2、真正數字化自動追頻電路，頻率全自動搜索補償，每時每刻保持最佳諧振狀態，使生產過程精準、穩定。
3、無級振幅控制,以5%遞增,大小膠件均能完美焊接 ,有效減少激穿,燙傷等不良品。
4、內設模具電流過高保護，頻率偏移保護，總輸出過大保護等多種模式，安全無虞，持久耐用。
5、寬頻帶設計，適應各種大小焊模和不同的設計模具。
6、采用FET場效管做功率放大，比傳統硅功率管反應速度快100倍以上，輸出更穩定有力。
7、機器故障自動檢測，方便維修。
8、時間、能量、深度控制模式可選，生產無憂，品質保證。
1, the intelligent touch control system, large LCD screen display, the extreme simple operation, effectively improve the production efficiency.
2, real digital automatic tracing frequency circuit, frequency automatic compensation, at all times to maintain optimum resonance condition, make the production process of precision, stability.
3, stepless amplitude control, increased by 5%, the size of plastic parts can perfect welding, effectively reduce the shock wears, scald and other defective products.
4, internal mold high frequency offset current protection, protection, total output of a variety of modes of large protection, safe, durable.
5, the broadband design, adapt to various sizes of welding mould and mould design of different.
6, using the FET field effect tube power amplification, the reaction rate is more than 100 times faster than traditional silicon power transistor, the output is more stable and powerful.
The main parameters:
Automatic detection of
7, machine failure, convenient repair.
8, time control mode optional, worry about production, quality assurance.
Z系列時間控制：
全智能時間控制系統，電腦控制、開機自檢、自動追頻、智能保護，精準時間控制0.001秒，便捷更耐用。
